Simple, Space-Efficient Storage

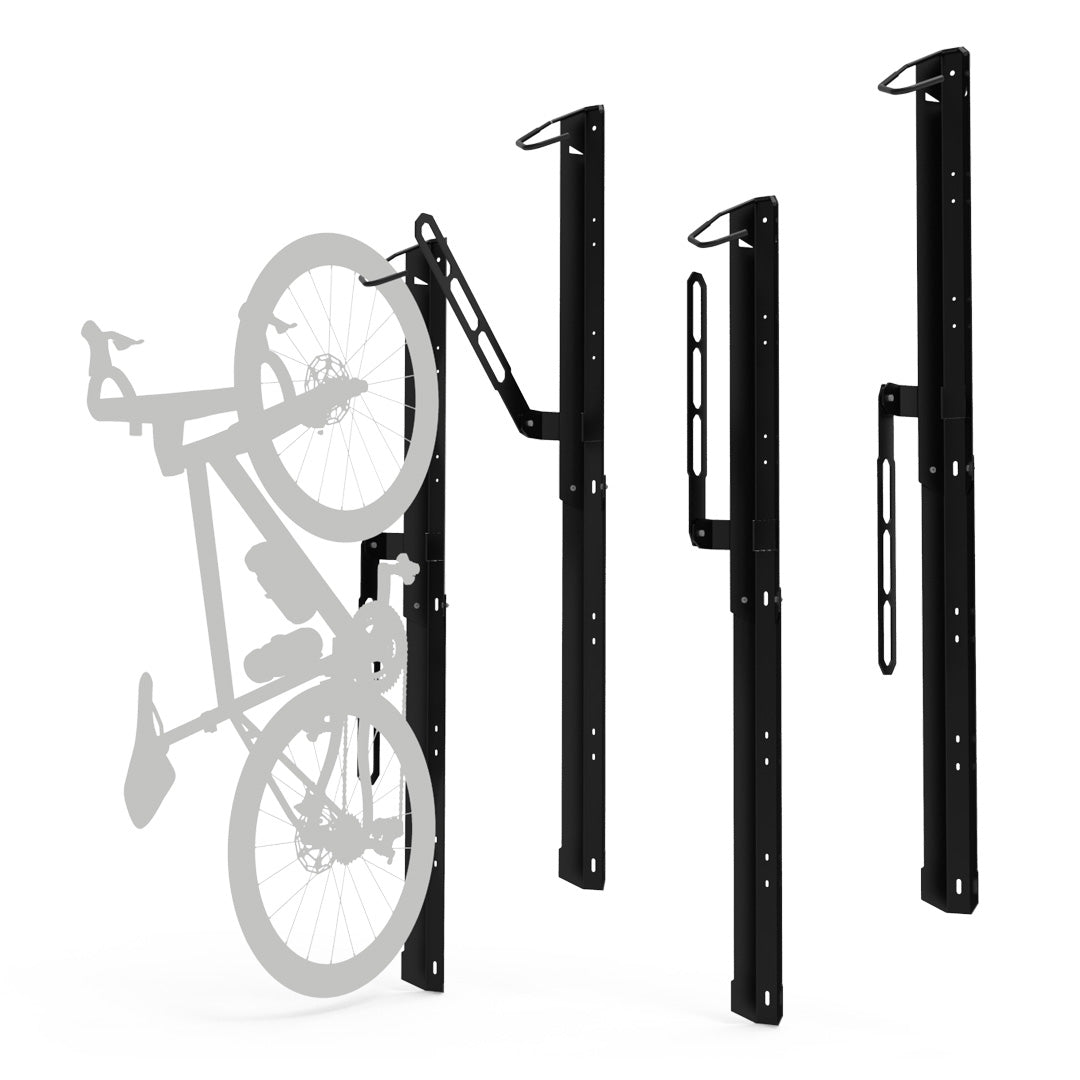

The Bike Trac offers a simple, space-saving vertical solution to bike storage. With full-length trays, it protects your walls while also allowing freedom for capacity and mounting configuration. The wide wheel track accepts tire sizes ranging from narrow road wheels all the way to 5” wide fat tires and mountain bikes, making it the perfect solution for mounting bikes in a small space, like your apartment, store, or garage.

Features

Locking Feature

LOCKING FEATURE

  • Locking
  • Locking
  • Non-Locking

Quantity
View full details

  • 1 bike per trac
  • At 15” spacing, stagger height of Tracs at 10”
  • At 24” spacing, Tracs can be installed at the same height
  • Powder coat black finish only
  • 84” minimum ceiling height
  • Two options available:
    • With locking bar: #6106
    • Non-locking: #6103
  • Recommended anchor for concrete wall: #28879
  • Dimensions: 66.3” L x 6.5” W"

Correct hardware will depend on the surface the rack is being installed into. Please consult your local hardware store for anchor recommendations based on your specific installation. Important details of your installation include wall surface type and thickness and the approximate weight of your bike.

Drawings:

Universal Non-Locking Bike Trac (6103)

PDF Install Guide

Universal Bike Trac w/ Locking Bar (6106)

PDF Install Guide
PRODUCT DIMENSIONS:
Length Width Ceiling Height
Univeral Non-Locking Bike Trac (6103) 87" minimum, 93" recommended 66.3" 6.5"
Universal Bike Trac w/ Locking Bar (6106) 87" minimum, 93" recommended 66.3" 6.5"
