Check out the technical documents below to make sure you have all the
necessary info for your new Saris Infrastructure product.
Contact Us if you have any questions.
Download Product Catalog
Filters
Bike Dock: 1.66" Flange Mounted
SketchUp| Length | Width | Height | Weight | Footprint w/ Bikes | |
|---|---|---|---|---|---|
| 2.38” Flange Mount | 33.44” | 5.25” | 27.75” | 26.24 lbs. | 68” x 110” |
| Model# | Weight | Length | Width | Height |
|---|---|---|---|---|
| 6501BLK | 15 lbs. | 26.9" | 9.4" | 32.5" |
| 6501 | 15 lbs. | 26.9" | 9.4" | 32.5" |
| Length | Width | Ceiling Height | |
|---|---|---|---|
| Univeral Non-Locking Bike Trac (6103) | 87" minimum, 93" recommended | 66.3" | 6.5" |
| Universal Bike Trac w/ Locking Bar (6106) | 87" minimum, 93" recommended | 66.3" | 6.5" |
| Model# | # of Bikes | Type of Mount | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 28385 | 2 | Flange | 73" | 5.25" | 18.25" | 46 lbs |
| Length | Width | Height | Weight | Footprint w/ Bikes | |
|---|---|---|---|---|---|

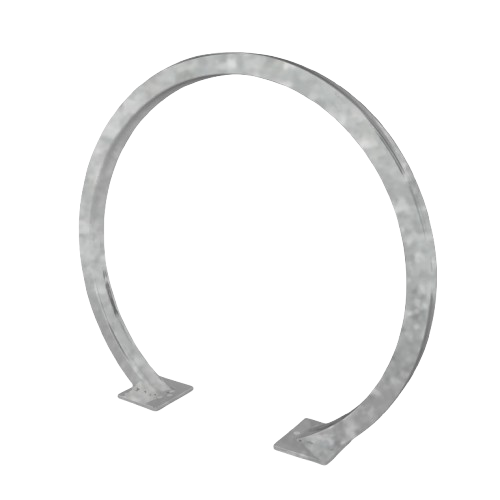

| Circle Dock | 93" | 5.4" | 27.4" | 37.99lbs | 68" x 110" |
| Length | Width | Height | Weight | Footprint w/ Bikes | |
|---|---|---|---|---|---|
| Post and Ring: Flange Mount | 32.37" | 6" | 17.25" | 22lbs | 68" x 110" |

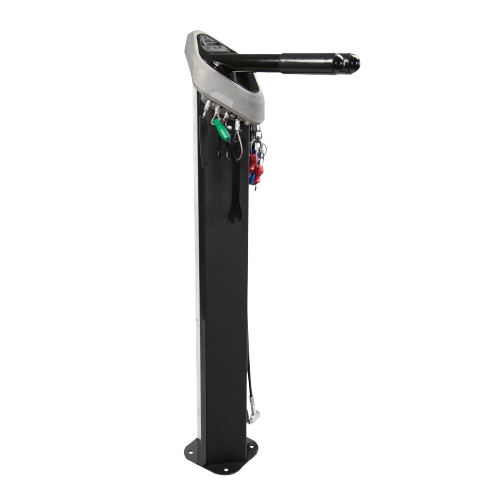

| Width | Height | Depth | |
|---|---|---|---|
| Deluxe Public Work Stand | 8.5" | 55.5" | 21" |
| 21.6cm | 140.8cm | 53cm |
*53"(135cm) lifting height
| Width | Height | Depth | |
|---|---|---|---|
| Outdoor Public Bike Pump (With Gauge) | 9" | 26" | 7" |
| 23cm | 66.3cm | 17.8cm |

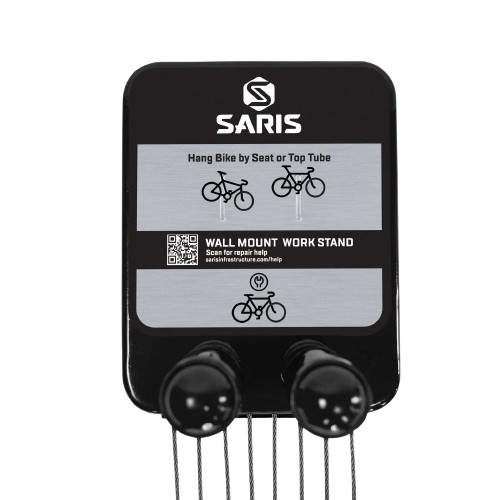

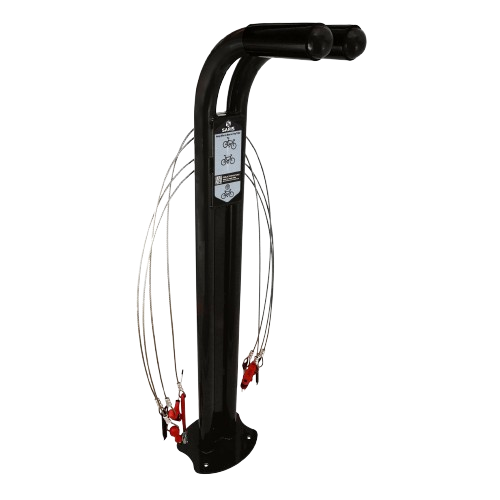

| Model# | Finish | Type of Mount | Weight | Length | Height with Tools | Width |
|---|---|---|---|---|---|---|
| 29755BLK | Black Powder Coat | Wall/Post | 29 lbs. | 16" | 61" | 11" |
| 29755RED | Red Powder Coat | Wall/Post | 29 lbs. | 16" | 61" | 11" |

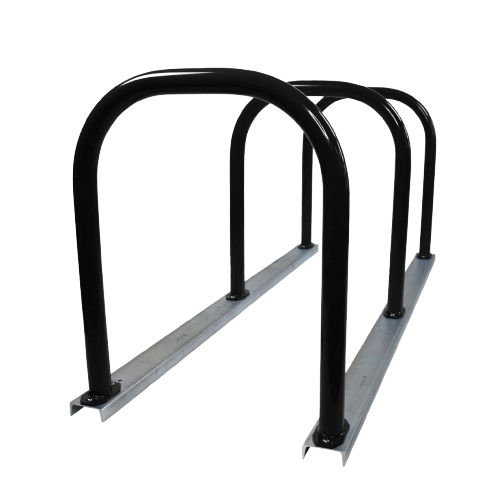

| Model# | Number of Bikes | Finish | Weight | Length | Height | Width |
|---|---|---|---|---|---|---|
| 34102 | 2 | Powder Coat | 22 lbs. | 19.88" | 36" | 5" |
| 34015 | 2 | Zinc Plated | 22 lbs. | 19.88" | 36" | 5" |
| Model# | Type of Mount | Weight | Length | Height | Width |
|---|---|---|---|---|---|
| 8700 | Freestanding | 11 lbs | 93.3"" | 5.4" | 27.4" |
| 8701 | Anchored | 7 lbs | 96.2" | 6" | 25.8" |
| Width | Height | Depth | |
|---|---|---|---|
| Bike Wash Station | 12" | 72" | 12" |
| 30.5cm | 183cm | 30.5cm |
| Width | Height | Depth | Weight | |
|---|---|---|---|---|
| Bike Wash & Fill Station | 12" | 72" | 12" | 58lbs |
| 30.5cm | 183cm | 30.5cm | 26.3kg |
| Width | Height | Depth | Weight | |
|---|---|---|---|---|
| Bike Wash & Fill Station | 12" | 56" | 12" | 38lbs |
| 30.5cm | 142.3cm | 30.5cm | 17.3kg |
| Width | Height | Depth | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| 2.38" Below Grade | 44.19" | 2.375" | 27.13" | 38.74lbs | 68" x 110" |
| 2.38" Flange Mount | 33.44" | 5.25" | 27.75" | 32lbs | 68" x 110" |
| Square Below Grade | 44" | 2" | 26.75" | 45.7lbs | 68" x 110" |
| Square Flange Mount | 33.25" | 5.25" | 27.75" | 38.32lbs | 68" x 110" |
Branded Post and Ring Rack: Below Grade
PDF| Width | Height | Depth | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| Branded Post and Ring: Flange Mount | 32.37" | 6" | 17.25" | 23.58lbs | 68" x 110" |
| Branded Post and Ring: Below Grade | 49.12" | 2" | 17.25" | 27.39lbs | 68" x 110" |
| Width | Height | Depth | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| 3-bike (single side), Below Grade Mount | 70.5" | 20" | 48.8" | 96lbs | 84" x 83" |
| 3-bike (single side), Free Standing/Flange Mount | 71" | 34" | 31.7" | 102lbs | 86" x 83" |
| 4-bike (single side), Below Grade Mount | 95.5" | 20" | 48.8" | 116lbs | 84" x 108" |
| 4-bike (single side), Free Standing/Flange Mount | 96" | 34" | 31.7" | 95lbs | 86" x 108" |
| 5-bike (single side), Below Grade Mount | 120.5" | 20" | 48.8" | 135lbs | 84" x 133" |
| 5-bike (single side), Free Standing/Flange Mount | 121" | 34" | 31.7" | 140lbs | 86" x 133" |
| 6-bike (single side), Below Grade Mount | 145.5" | 20" | 48.8" | 154lbs | 84" x 158" |
| 6-bike (single side), Free Standing/Flange Mount | 146" | 34" | 31.7" | 160lbs | 86" x 158" |
| 5-bike (double side), Below Grade Mount | 70.5" | 36.9" | 48.8" | 113lbs | 120" x 83" |
| 5-bike (double side), Free Standing/Flange Mount | 71" | 36.9" | 31.7" | 118lbs | 120" x 83" |
| 7-bike (double side), Below Grade Mount | 95.5" | 36.9" | 48.8" | 140lbs | 120" x 108" |
| 7-bike (double side), Free Standing/Flange Mount | 96" | 36.9" | 31.7" | 145lbs | 120" x 108" |
| 9-bike (double side), Below Grade Mount | 120.5" | 36.9" | 48.8" | 167lbs | 120" x 133" |
| 9-bike (double side), Free Standing/Flange Mount | 121" | 36.9" | 31.7" | 173lbs | 120" x 133" |
| 11-bike (double side), Below Grade Mount | 145.5" | 36.9" | 38.8" | 194lbs | 120" x 158" |
| 11-bike (double side), Free Standing/Flange Mount | 146" | 36.9" | 31.7" | 200lbs | 120" x 158" |
| Width | Height | Depth | |
|---|---|---|---|
| Bike Pump - cabinet | 16" | 12" | 9" |
| 41cm | 30.5cm | 23cm | |
| Cabinet - with stand | 16" | 45" | 9" |
| 41cm | 115cm | 23cm |
| Voltage | Max. Current | |
|---|---|---|
| North America | 110v | 15amps |
| Global | Contact Us | Contact Us |
| Minimum Bike Spacing | Ceiling Height | |
|---|---|---|
| Cable Locking Bike Trac | 15" staggered 24" level | 96" |
| Bike Trac | 15" staggered 24" level | 80" |
| Length | Width | Height | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| 10-bike, Standard Leg Mount, double-sided | 62" | 38" | 31" | 59lbs | 71" x 127" |
| 5-bike, Standard Leg Mount, single-sided | 62" | 26" | 31" | 41lbs | 71" x 72" |
| Length | Width | Height | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| High Security Bike Dock | 33.25" | 5.25" | 27.75" | 32.67lbs | 68" x 110" |
| Length | Width | Height | Weight | |
|---|---|---|---|---|
| Hoop Sign | 5.25" | 27.75" | 60" | 55.75lbs |
| Width | Height | Depth | |
|---|---|---|---|
| Indoor Bike Pump | 10" | 28" | 8" |
| 24cm | 70cm | 20cm |
| Width | Height | Depth | |
|---|---|---|---|
| Outdoor Bike Pump (no gauge) | 9" | 26" | 7" |
| 23cm | 66.3cm | 17.8cm |

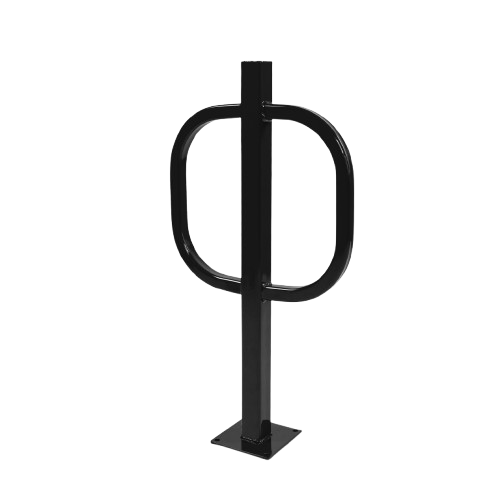

Post and Ring Rack: Below Grade
PDF| Length | Width | Height | Weight | Footprint w/ bikes | |
|---|---|---|---|---|---|
| Post and Ring: Below Grade | 49.12" | 2" | 17.25" | 25.6lbs | 68" x 110" |
